Imo TDM10 – TDAS – TDSD1 are the new generation of din rail timers and being only 17.5mm wide, the modular frame will suit any consumer unit or industrial panel.

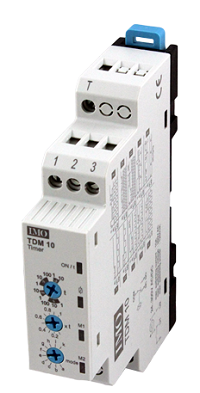

news_imo_timersImo TDM10 timer has 10 functions and can accept a wide supply voltage from 24V to 300V AC or DC.  On the front of the unit, 3 selectors allow you to easily and accurately configure the timer (function, time range, and coefficient), 4 LED lights will constantly keep you updated on the state of the timer (Relay on/off, timer counting, function coded). In the event you misplace the instruction sheet, all functions diagram are printed on the side of the timer along with the wiring diagram. On the output, a changeover relay is giving you normally open or normally close contact to suit all applications. You can switch up to 10A @ 250Vac.

TDAS is a new timer for asymmetrical application where you require time On and Off to be different. Set up 2 different times and use one of the 5 functions available.

TSDS1 is a Star-Delta timer, using the same body as the rest of the range. With 2 changeover relay outputs, you can control your motor start up and define the time in Star and the transition time between Star and Delta (20ms to 500ms).

If you would like a data sheet for these products or wish to get a quotation, please do not hesitate to get in contact with us.
